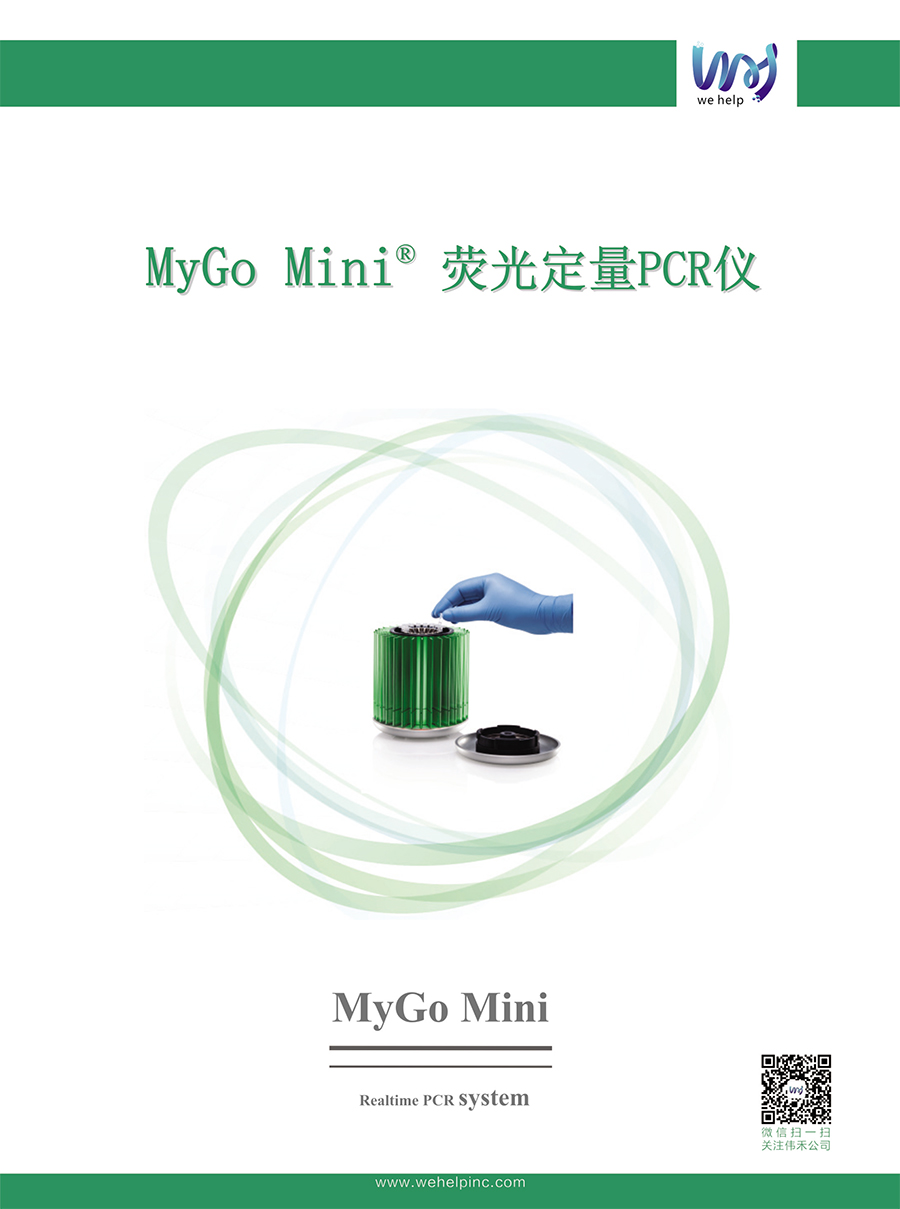

MyGo Mini fluorescence PCR instrument

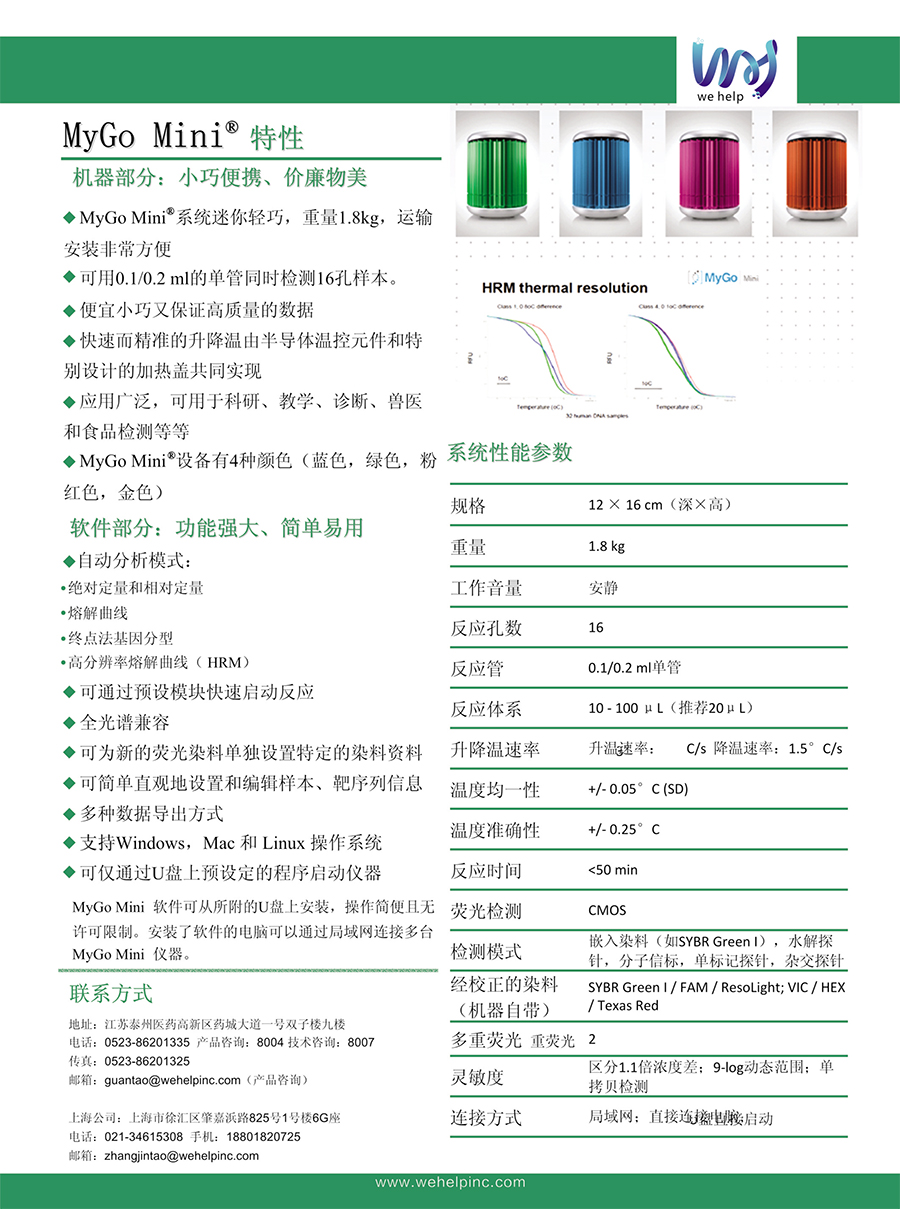

[System performance parameters]

Specification: 12 x 16cm (depth x height)

Weight: 1.8kg

Working volume: quiet

Number of reaction pores: 16

Reaction tube: 0.1ml single tube

Reaction system: 10-100 μ L (20 recommended) μ L)

Temperature rise and fall rate: Heating rate: 3 ℃/s Cooling rate: 1.5 ℃/s

Temperature uniformity:+/-0.05 ℃ (SD)

Temperature accuracy:+/-0.25 ℃

Reaction time:<50min

Fluorescence detection: CMOS

Detection mode: embedded dye (such as SYBR Green I), hydrolysis probe, molecular beacon, single labeled probe, hybrid probe

Corrected dye (machine included): SYBR Green/FAM/ResoLight; VIC/HEX/Texas Red

Principle of temperature rise and fall: The semiconductor temperature control component and specially designed heating cover are jointly implemented

Automatic analysis mode: absolute and relative quantification, melting curve, endpoint genotyping, high-resolution melting curve (HRM)

Multiple fluorescence: 2-fold fluorescence

Sensitivity: Distinguish 1.1 times concentration difference; 9-log dynamic range; Single copy detection

Connection method: LAN; Directly connect to the computer; USB drive starts directly
